70cm DVB-T 50W Amplifier

 Commercial 70cm Amplifier… NEW old stock --> One pieces left on stock,  without Heatsink but with PCB cover,
 for sale ! ask  9a6rzn@gmail.com

Vcc: +28V and +8V
Freq. range: 420....470MHz
Gain: 43~51dB ( adjustable )
Max. Output DVB power: 60 Watt
Max. Output power CW mode: more than 150W , but not provided for this Output power !!!!
Size: 28x10x2.5cm









Gain Adjustment 0....-8dB

Output power and RF monitor voltage.....

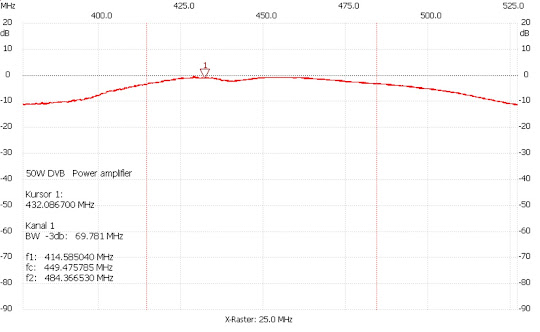

Bandwidth sweep.....






Very suitable for HV320 or other 70cm transmitters with low output power  ( <1mW ).






For  sale ,     you can buy it here:      9a6rzn@gmail.com
