10.0 ~ 10.5 GHz " Class A " Power Amplifier



          Youtube video:          https://www.youtube.com/watch?v=uxpnoj60W1E



Von Anfang bis Ende.....






















Fertig verlötet und abgeglichen.......





Do you need a 10GHz power amplifier ?





























































===== new  one  version ============



Youtube shorts video:     https://www.youtube.com/shorts/_zjd6DG8x3k









Price:   250euro / pcs
https://www.youtube.com/watch?v=LFi5tdruAb0


















===== 10GHz  PA with Mini Circuits Chip  PMA5-123-3W    =======









Test condition:     Freq. 10368 MHz        CWmode         Vcc:  7V

INP  Pwr           Output           Icc           RFmonitor         PA Gain
    mW                  Watt            Amper         Volt                     dB
    23                      3,5               1,5               -2,10                ~22,0
    15                      3,0               1,48             -2,08                ~22,9
    10                      2,4               1,4               -1,98                ~23,8
   7,6                      1,9               1,33             -1,80                ~24,1
    5                        1,3               1,23             -1,41                ~24,1
   3,8                      1,0               1,23             -1,25                ~24,7
   2,5                  540mW           1,23             -0,76                ~23,3
     1                   200mW           1,23             -0,30                   23
    0,5                 107mW           1,23             -0,10                   23

PA frequency bandwidth:    7,8GHz ............. 12,1GHz      (  at 1,3W RF output !! )

I was impressed by the linear frequency bandwidth and the chip not
oscillating even with the input port open.

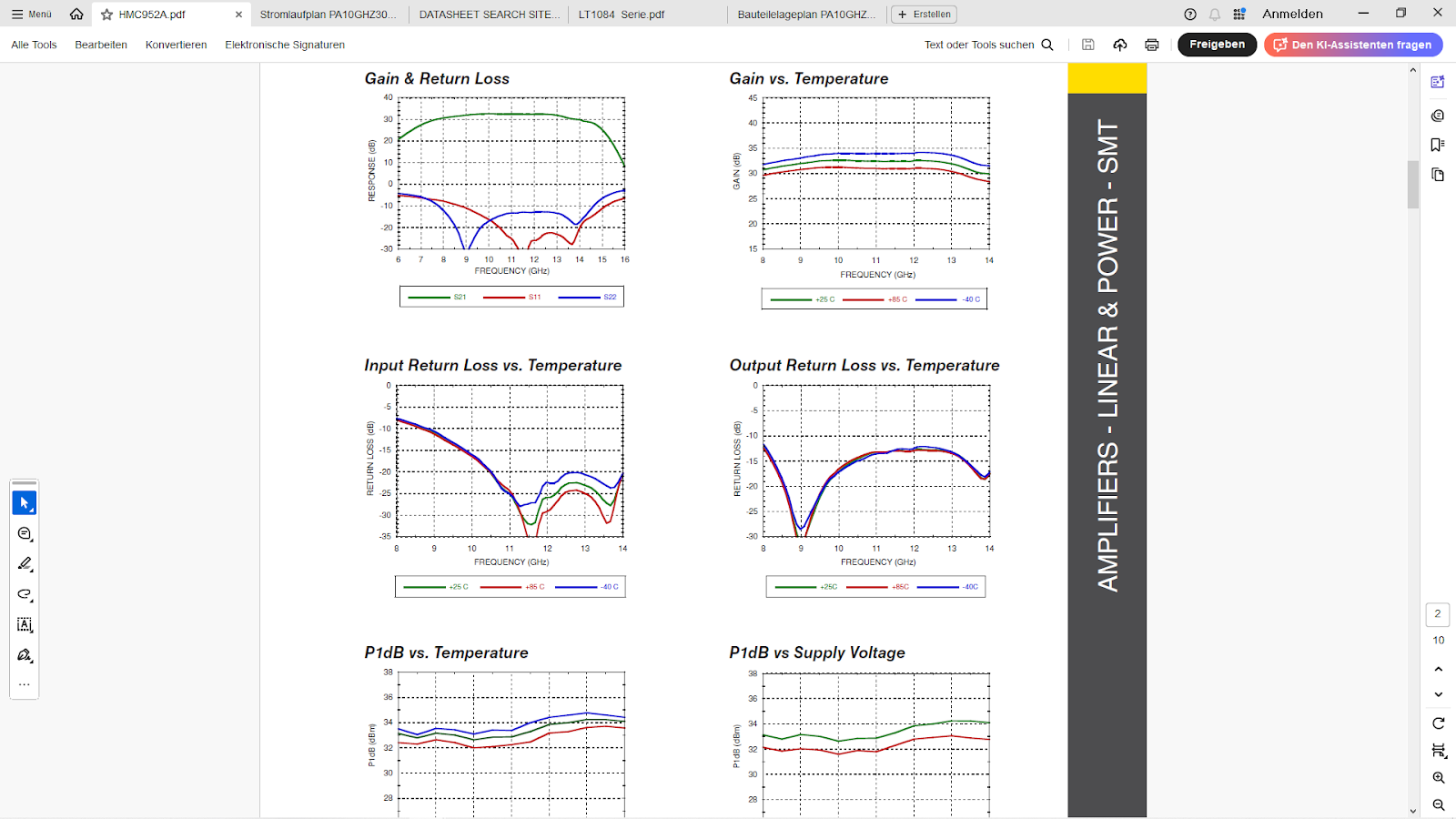

datasheet.....




Price :     280euro
